Let's talk about keyboards…

-

Once the DEV-boards are in production, I need to start thinking about moving to the next milestone of designing and building the full computer.
First item on the TODO-list is the keyboard.

For a long time, I’ve been looking for a pre-made oridinary keyboard with the layout I wanted, to keep the cost of the machine down.
I even found out a workable one, but in pretty low quality and not available in bulk.

After some research on building custom keyboard, I’ve decided it is not that hard and I should just build my own design. What could go wrong…

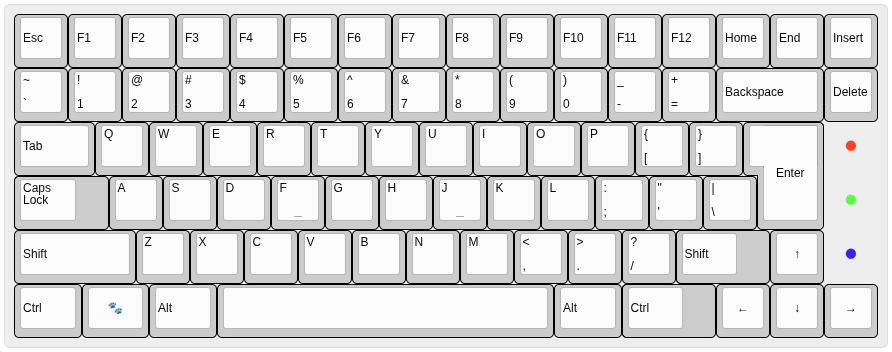

This is the X65 keyboard layout I’ve envisioned:

X65 keyboard layout

I’m sure you can see the inspiration and the look and form factor I am going for.

Top two rows are packed and ortholinear, specifically so you could rearrange keys to one of these wild layouts envisioned by Android Arts:

keyboard famicube keyboard amiga770

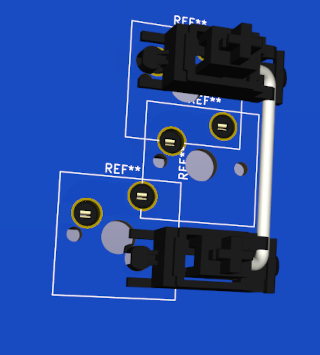

I am also exploring options for customizing layout of ISO/ANSI Enter key:

X65 keyboard ISO/ANSI Enter key

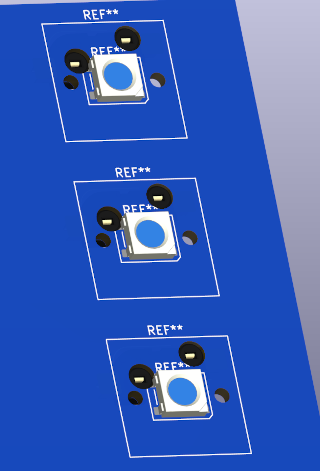

and for additional keys instead LEDs, if someone wishes to…

X65 keyboard LEDs keys
